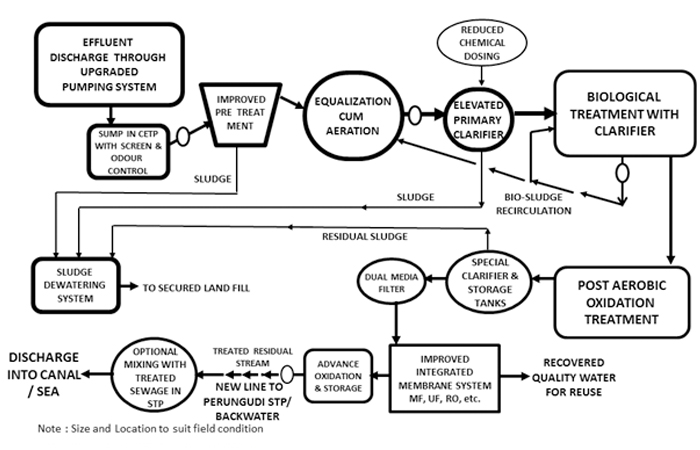

PROCESS FLOW DIAGRAM

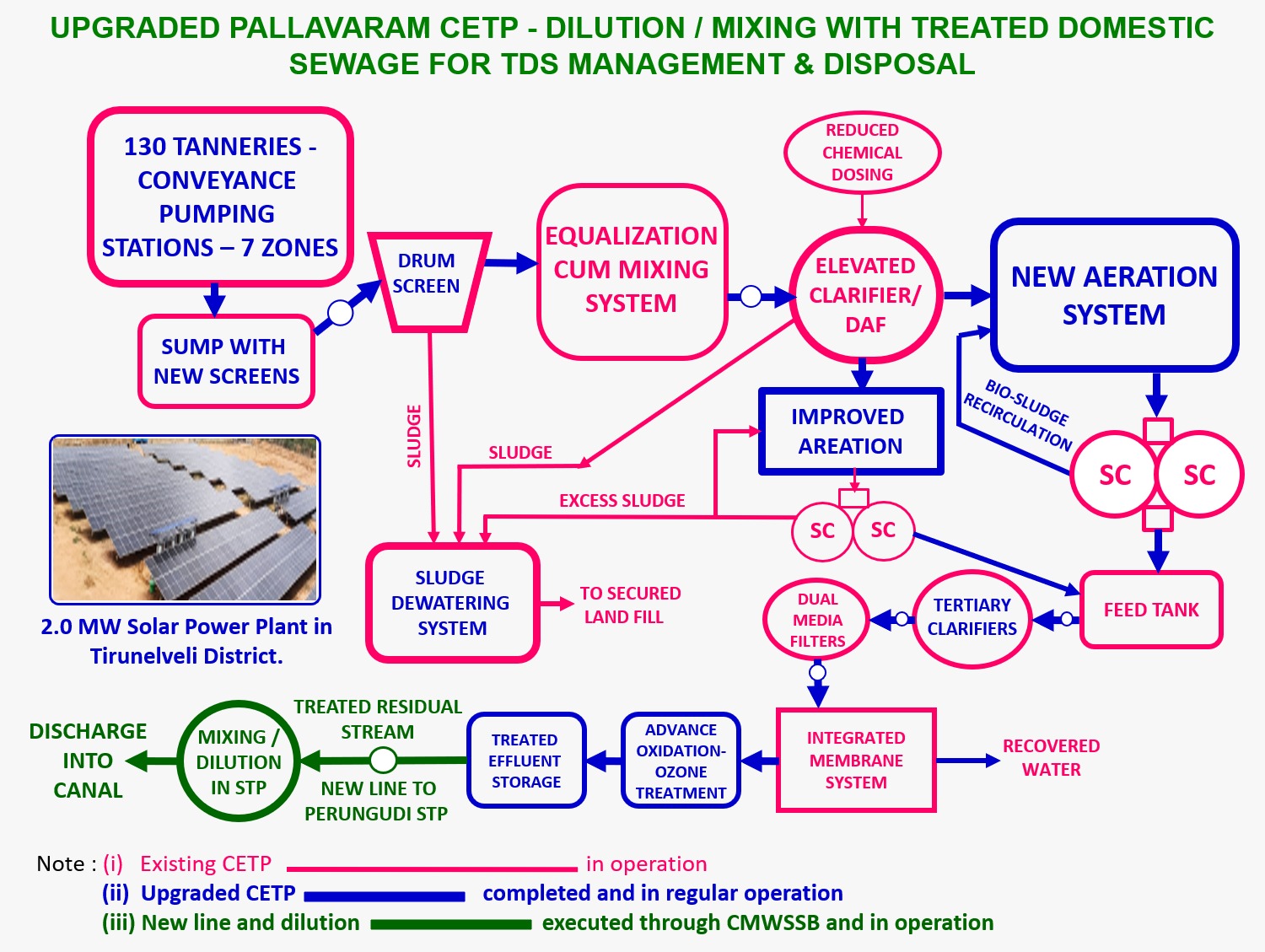

PROCESS FLOW DIAGRAM FOR UPGRADATION OF PALLAVARAM CETP – DILUTION WITH TREATED DOMESTIC SEWAGE FOR TDS MANAGEMENT AND DISPOSAL

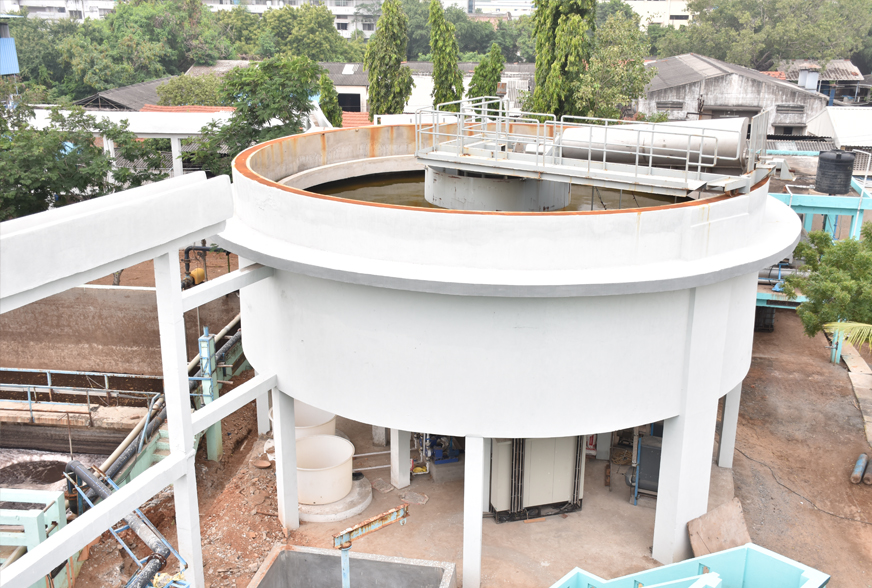

NEW ELEVATED PRIMARY CLARIFIER WITH DISSOLVED AIR FLOTATION (DAF) SYSTEM

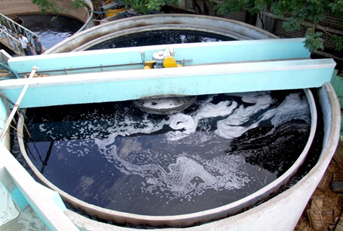

REACTIVE CLARIFIER WILL BE UPGRADED WITH ADDITIONAL COMPONENTS FOR FURTHER CLARITY AND REDUCTION OF RESIDUAL COD

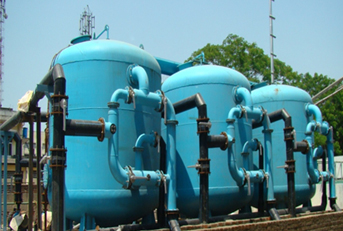

UPGRADED DUAL MEDIA FILTERS WILL BE PROVIDED TO OBTAIN BETTER PERFORMANCE

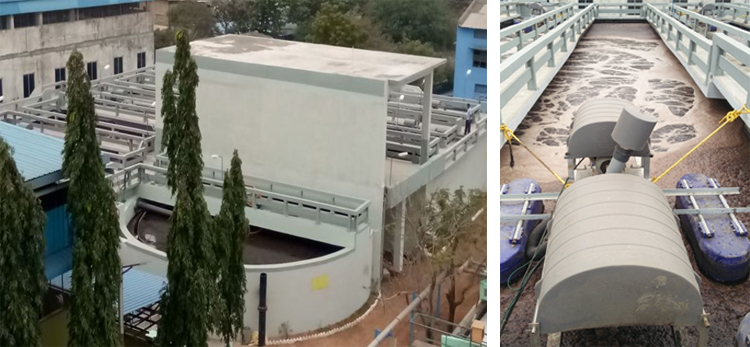

IMPROVED AEROBIC BIOLOGICAL TREATMENT
SYSTEM WITH SPECIAL DESIGN AND USE OF ASPIRATORS WITH COMPRESSORS

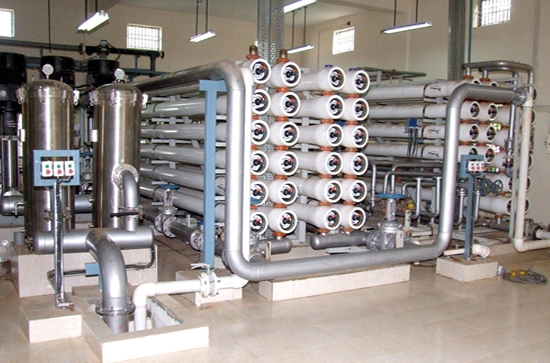

REPLACEMENT OF UF WITH SPECIAL HIGH RATE RECIRCULATION AND MEMBRANE SYSTEM FOR QUALITYWATER RECOVERY – ACTION INITIATED

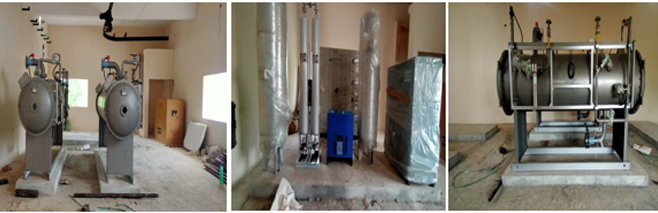

ADVANCE OXIDATION SYSTEM USING OZONE TREATMENT
Advance oxidation system with Ozone treatment is being implemented to remove the residual non-degradable COD and colour. This will make the treated effluent fit for mixing / dilution with treated domestic sewage for sustainable TDS management.

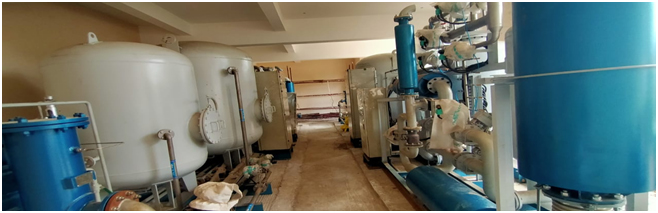

OXYGEN GENERATION SYSTEM
